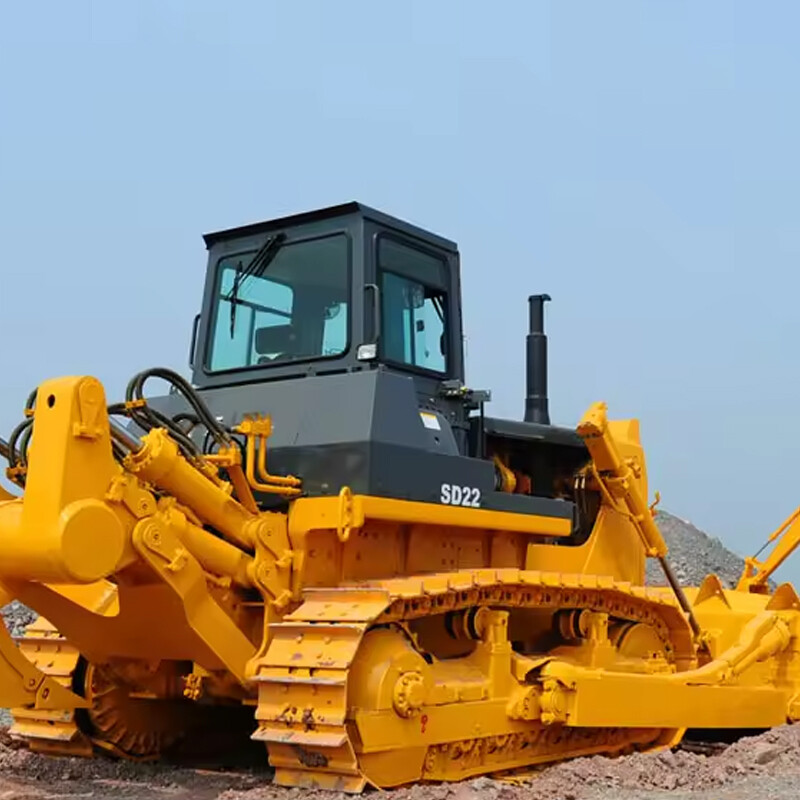

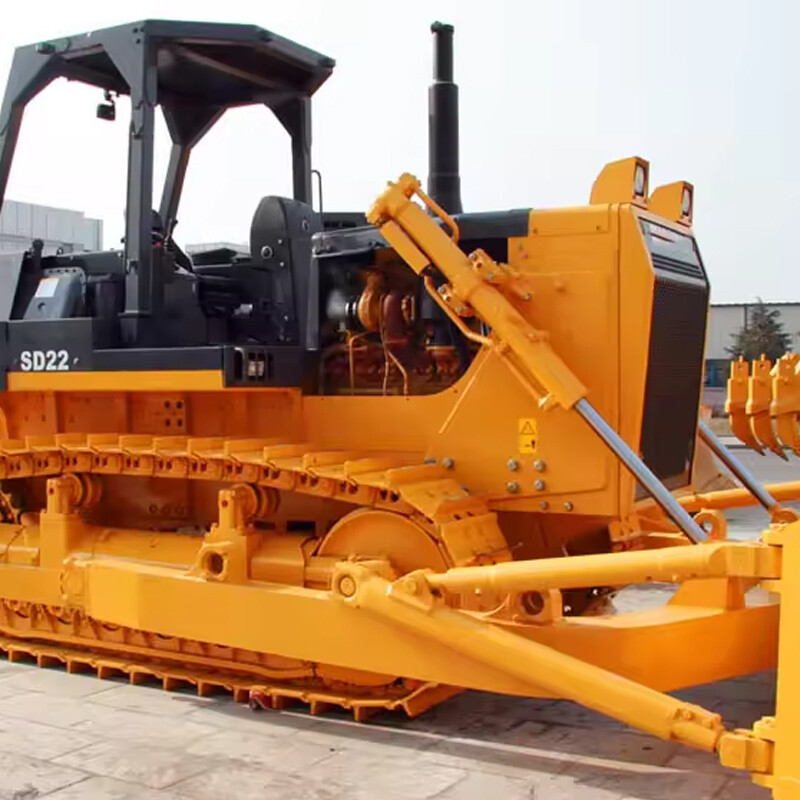

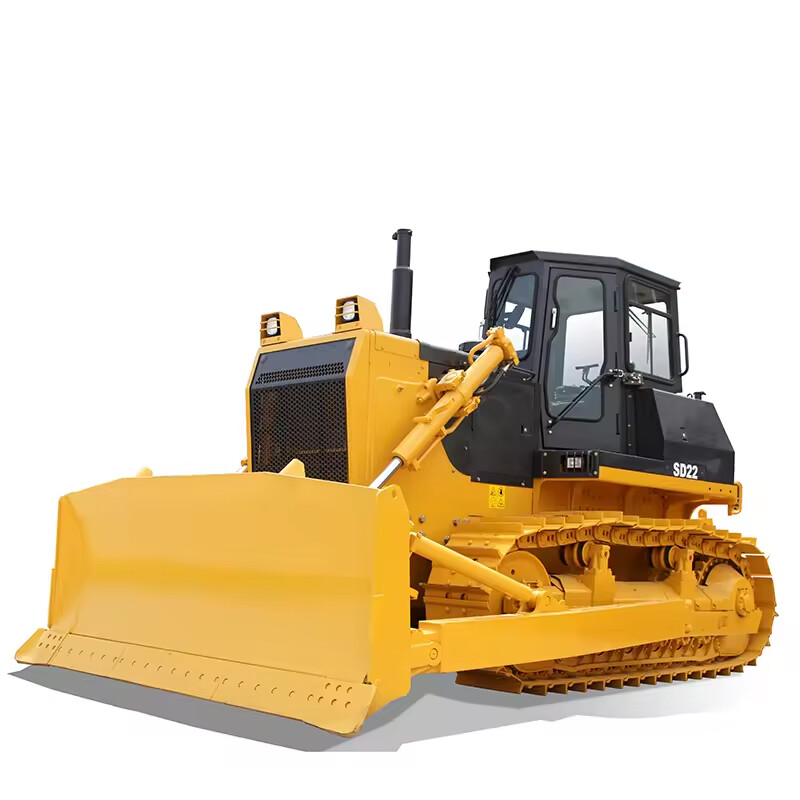

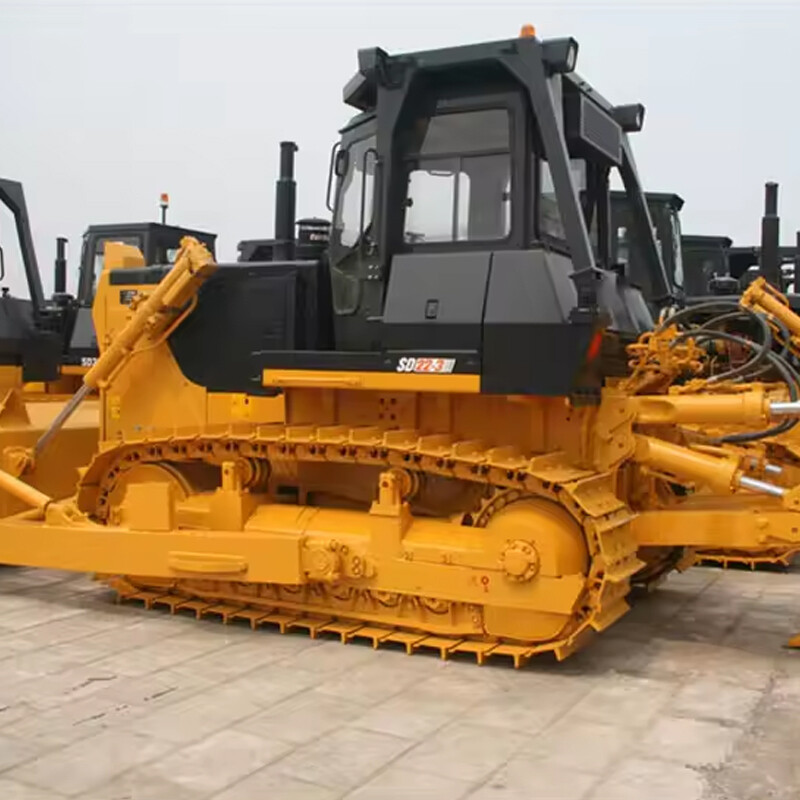

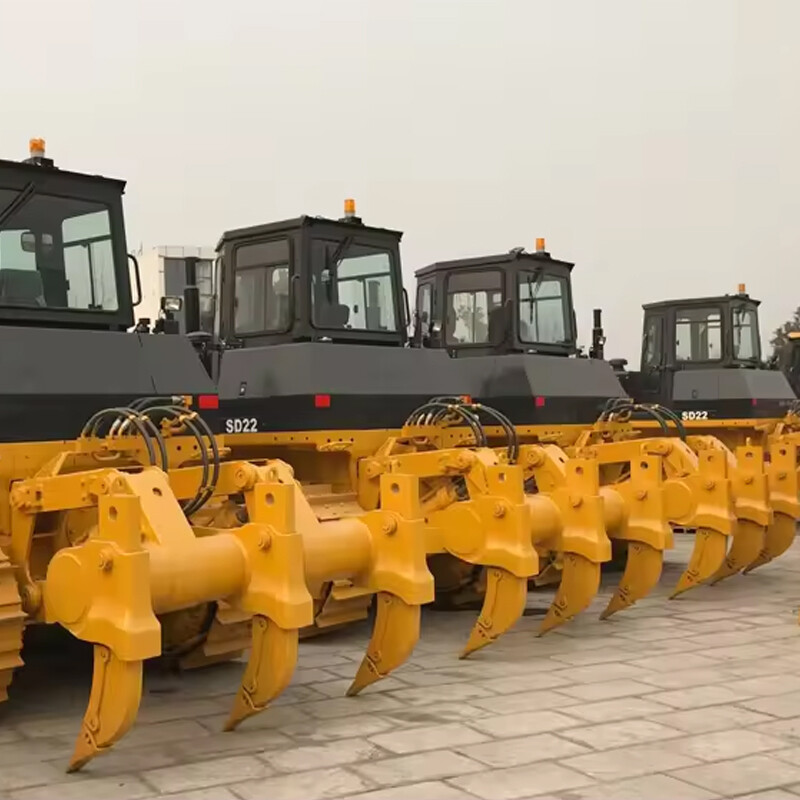

Shantui Bulldozer SD22

Bulldozer is a kind of earth-moving machinery that can dig, transport and discard rock and soil. It is widely used in open-pit mines.



+8618865311900



+8618865311900



vastadvantageheavyindustry@s-materialgroup.com



Xuzhou Economic Development Zone, Jiangsu Province

whatsapp

E-mail

contact us

Product Description

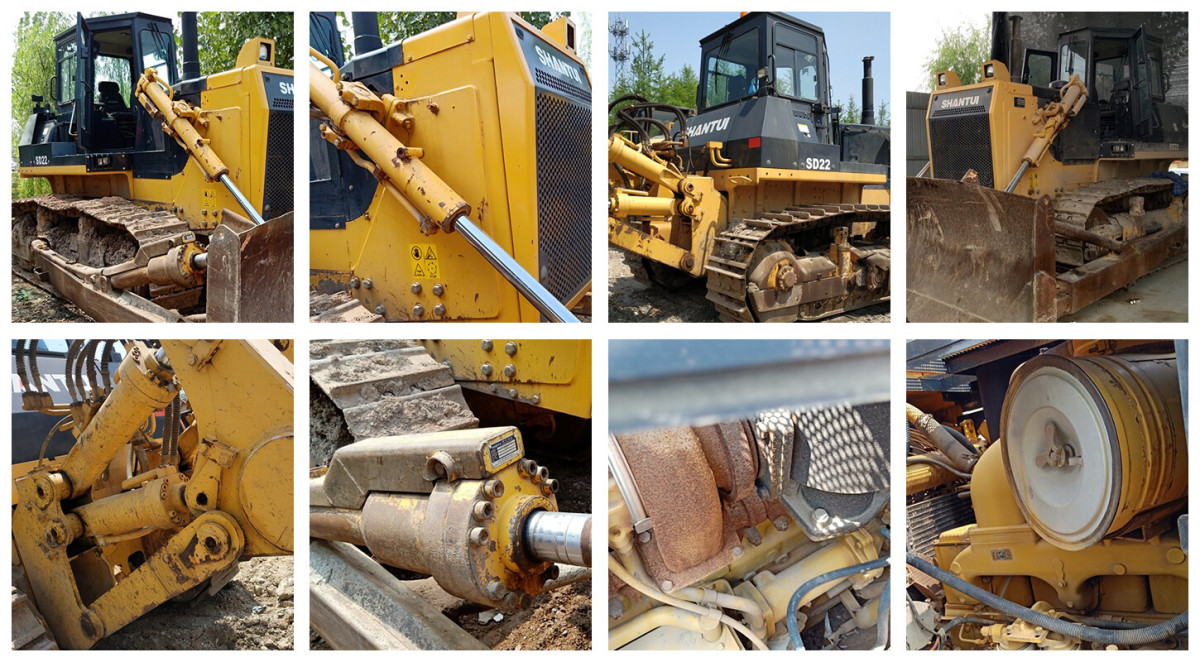

Products real shot

Onsite warehouse

Goods delivery

After-sales

Product Description

● Re-engined NT855-C280S10 engine, strong power, high efficiency and energy saving. ● High reliability of power shift transmission, stable hydraulic torque converter, secondary straight tooth structure of the final transmission, can be efficient transmission of power, with high transmission power and efficient production efficiency. ● The engine can work normally and reliably under any load conditions and any thermal environment required by the user, without causing engine overheating. ● It can realize automatic fault diagnosis and whole-process monitoring. Overall cast plastic instrument panel, set air conditioning, electrical appliances, instruments as a whole, more beautiful high-grade. ● Full box structure of the main frame, the application of high performance materials and high strength castings, with high bearing impact load and bending and torsion resistance ability, high quality welds to ensure that the main frame has a full life cycle. ● Semi-rigid suspension walking system, increase the ground area of the track, improve the traction of the vehicle. ● According to ergonomic, driving seat and armrest, can be easily adjusted up and down before and after, transmission, steering and throttle control on the left, and the use of soft shaft structure, working device control on the right, the use of servo control system, so that the operation process is more light and flexible, reduce fatigue. ● Standard tilting shovel, with strong cutting force, can cope with a variety of difficult working environment; Large SINGLE TOOTH soil LOOSENer, with adjustable entry Angle, can be used for loose clay, frozen soil and other soil layers, but also can be used for gravel, hardened salt mine and other hard surface stripping.

Product Parameters

Basic parameter
product name：	bulldozer	working weight：	23400kg
brand name：	Shantui	net power：	162kW/1800rpm
product model：	ShantuiSD22	Shovel capacity：	6.4m³(straight tilt shovel)

Engine parameter
engine type：	Cummins NT855-C280(S10)	bore-stroke ratio：	bore-stroke ratio
engine cylinder number：	6-cylinder in-line design	engine supercharging technology：	Water-cooled, ‌ four-stroke, ‌ direct injection with top valve, ‌ turbine
engine capacity：	14L

Transmission system parameter
Travel speed gear：	Gear 1 travelling speed 0-3.6km/h, ‌ gear 2 travelling speed 0-6.5km/h, ‌ gear 3 travelling speed 0-11.2km/h.

Boundary dimension
Length × width × height (‌ without soil ripper) ：	5495×3725×3745mm.	Ground specific pressure：	0.077Mpa
working weight：	23.4 tons	Sickle form：	Straight tilt shovel, ‌ corner shovel, ‌U shovel, ‌ half U shovel

1、 One click repair, quick response

Customers can report repairs through various forms such as WhatsApp, WeChat, after-sales phone, official website, etc., and receive orders within 15 minutes. Customer service has many years of professional experience and strives to build a fast communication bridge to ensure that every request is resolved and everything is responded to

2、 Expert team, technical support

A powerful team of experts provides rapid consultation on faults, offers the best repair solutions, and offers lifelong technical support for the entire vehicle

3、 Time limited maintenance, overtime compensation

The repair of faulty vehicles is completed within a limited time frame. Generally, faults are completed within 24 hours, and major and difficult faults are completed within 72 hours. If the time limit is exceeded, compensation will be given at a rate of $200 per day

4、 Service quality, customer evaluation

Customers can evaluate the service quality of each order through the official website and WhatsApp after-sales account. The after-sales service is fully supervised by customers. If there is an unresolved after-sales problem, customers can receive a maximum compensation of $1000 per feedback

Applicable Scenarios
