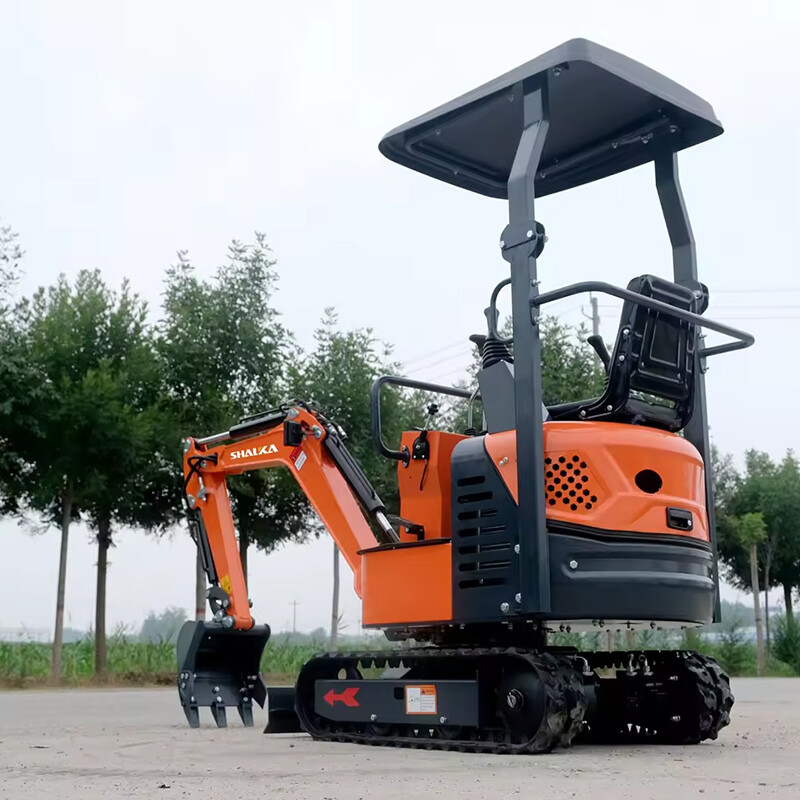

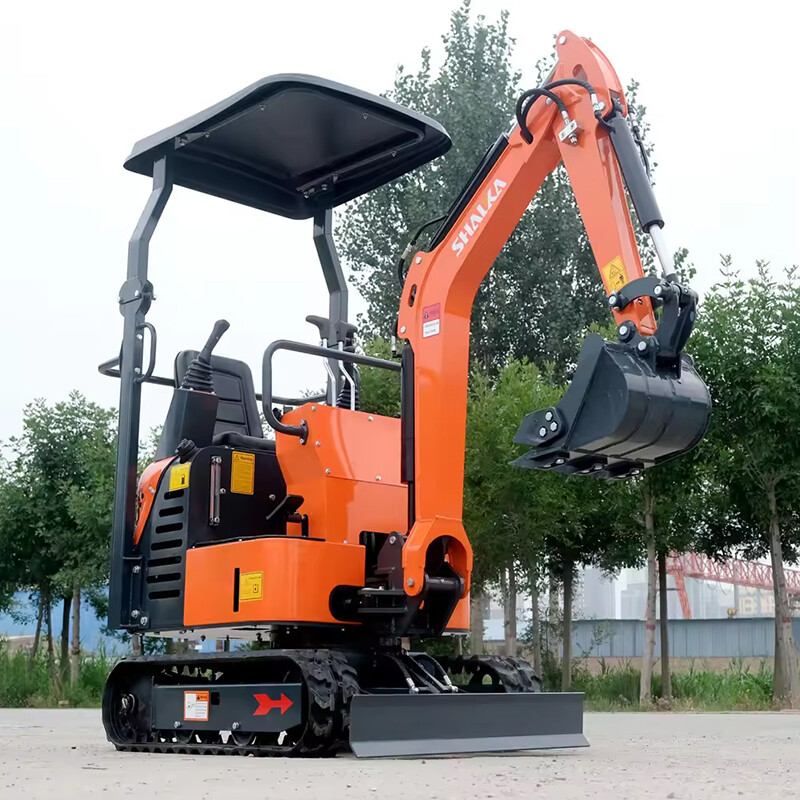

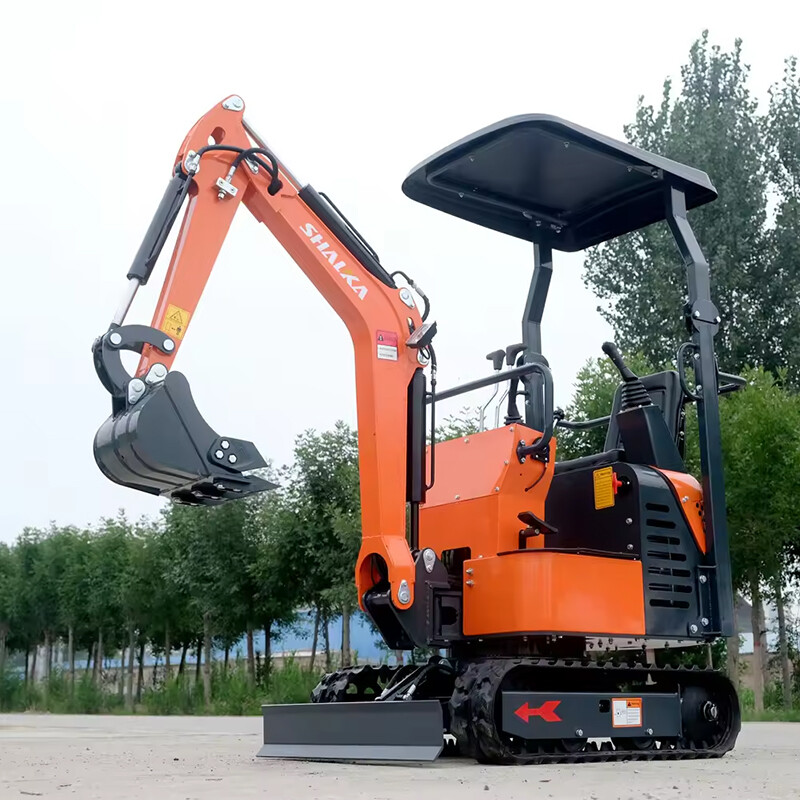

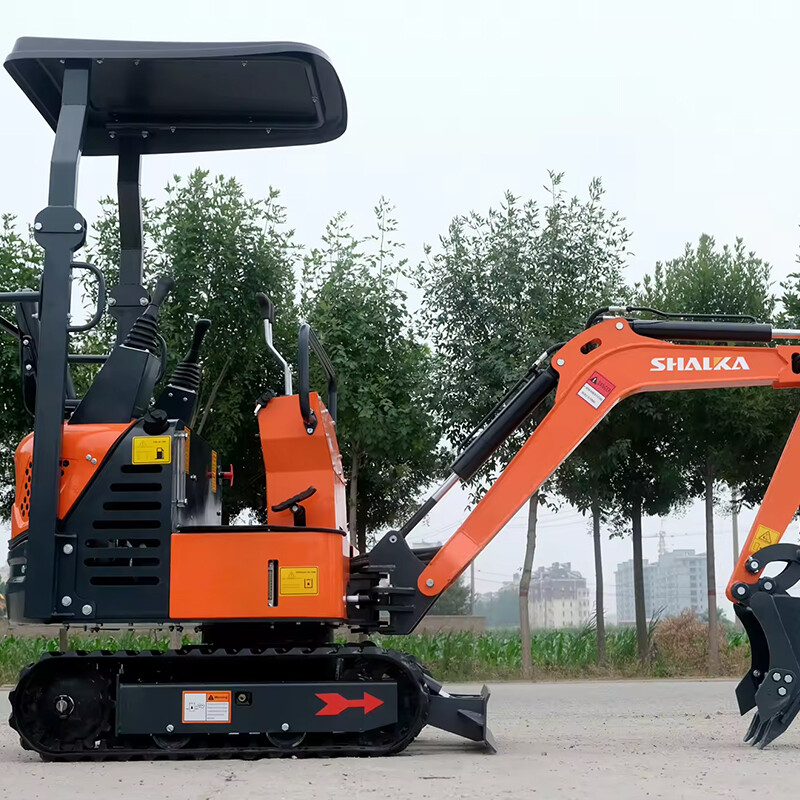

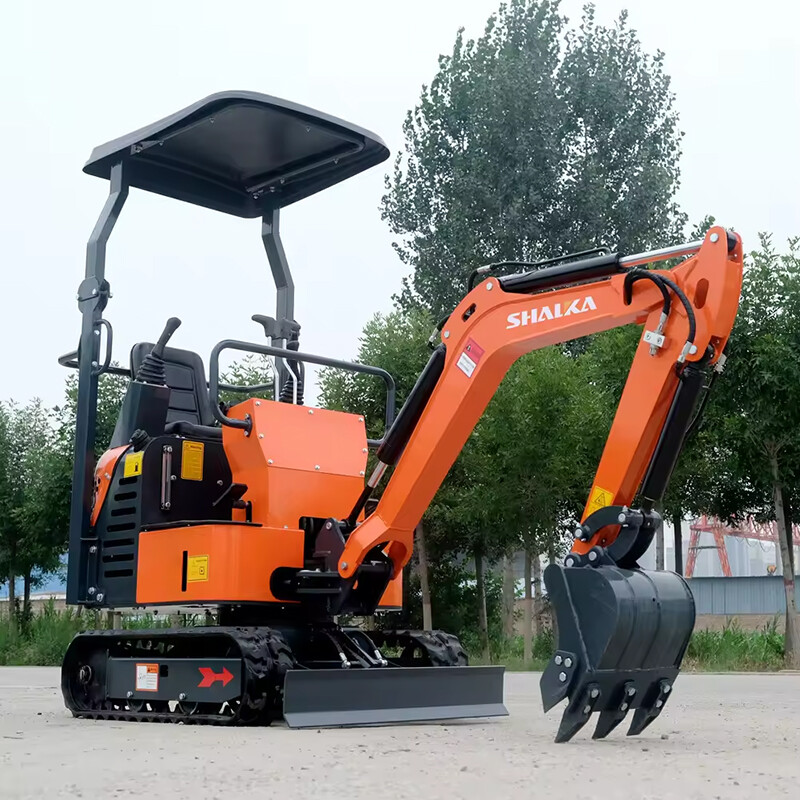

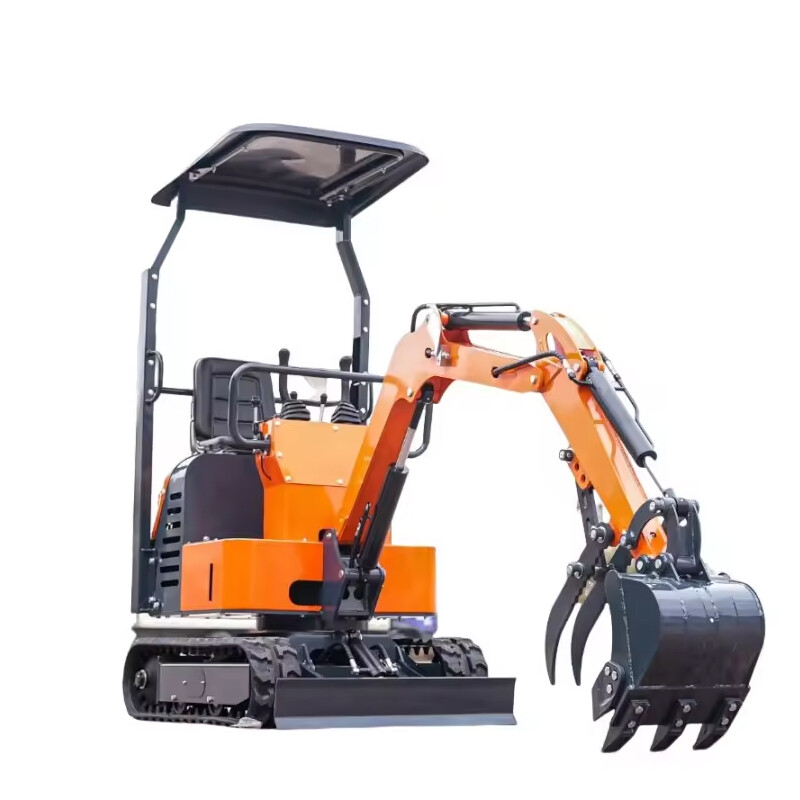

Shanding 1 ton hydraulic excavator-XG13X

Earth-moving machinery that uses a bucket to dig materials above or below the surface and load them into transport vehicles or unload them to a stockpile.



+8618865311900



+8618865311900



vastadvantageheavyindustry@s-materialgroup.com



Xuzhou Economic Development Zone, Jiangsu Province

whatsapp

E-mail

contact us

Product Description

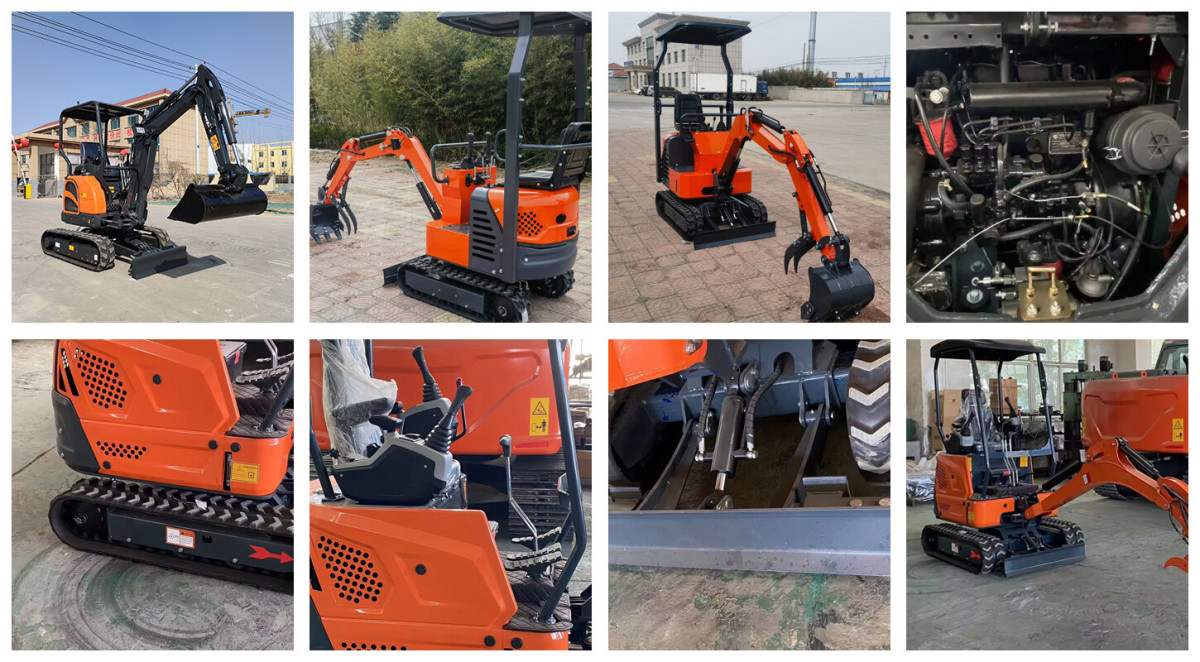

Products real shot

Onsite warehouse

Goods delivery

After-sales

Product Description

Energy saving and environmental protection: Mechanical fuel injection engine is used to meet the national III emission standards, with strong power, energy saving and environmental protection. The key hydraulic parts adopt the latest technological achievements, low energy consumption, fast response, accurate control, and can maintain strong excavation ability and excellent operation efficiency.Efficient return: the tailless design is adopted to ensure the operation under narrow working conditions, and the left and right deflection angles of the working device are 60 ° and 50 ° respectively, which can be combined with the rotation of the car to ensure that the excavation parallel to the wall is realized in a narrow space. The chassis has a telescopic function, which can improve the passing capacity of the whole vehicle.Reliable and durable: The four-point support cab meets safety standards, ensures strength and improves visibility, and ensures higher operational safety. Focus on strengthening the stress bearing of boom and stick, and improve the service life.

Product Parameters

Machine Configuration
Engine Model	KOOP 192 or KUBOTA D722	Rotation Motor	SANYO
Main Valve	BEIFANG	Walking Motor	SANYO
Main Pump	TIANJI

Machine parameters
Operating Weight	1020kgs	Max. Ground Pressure	18.9N/m²
Bucket Capacity	0.028m³	Max Walking Speed	2.1Km/h
Rated Power	14kw	Max. Traction	9.2KN
Max.Hydraulic System Pressure	16mpa	Platform Rotary Speed	9-11r/min
Max. Grade ability	30°	Boom swing function	yes

Dimensions
Overall Length	2770mm	Track Width	180mm
Overall Width	925mm	Ground Clearance	240mm
Overall Height	1550mm/2100(Chair/Roof)	Platform Width	920mm
Arm Length	800mm	Platform Ground Clearance	420mm
Boom Length	1490mm	Bucket Width	370mm
Track Length	1210mm

Working range
Max. Digging Height	2650mm	Max Dumping Height	1750mm
Max Digging Depth	1650mm	Min. Radius of Gyration	1150mm
Max. Digging Radius	2950mm	Radius of Tail Gyration	680mm

1、 One click repair, quick response

Customers can report repairs through various forms such as WhatsApp, WeChat, after-sales phone, official website, etc., and receive orders within 15 minutes. Customer service has many years of professional experience and strives to build a fast communication bridge to ensure that every request is resolved and everything is responded to

2、 Expert team, technical support

A powerful team of experts provides rapid consultation on faults, offers the best repair solutions, and offers lifelong technical support for the entire vehicle

3、 Time limited maintenance, overtime compensation

The repair of faulty vehicles is completed within a limited time frame. Generally, faults are completed within 24 hours, and major and difficult faults are completed within 72 hours. If the time limit is exceeded, compensation will be given at a rate of $200 per day

4、 Service quality, customer evaluation

Customers can evaluate the service quality of each order through the official website and WhatsApp after-sales account. The after-sales service is fully supervised by customers. If there is an unresolved after-sales problem, customers can receive a maximum compensation of $1000 per feedback
