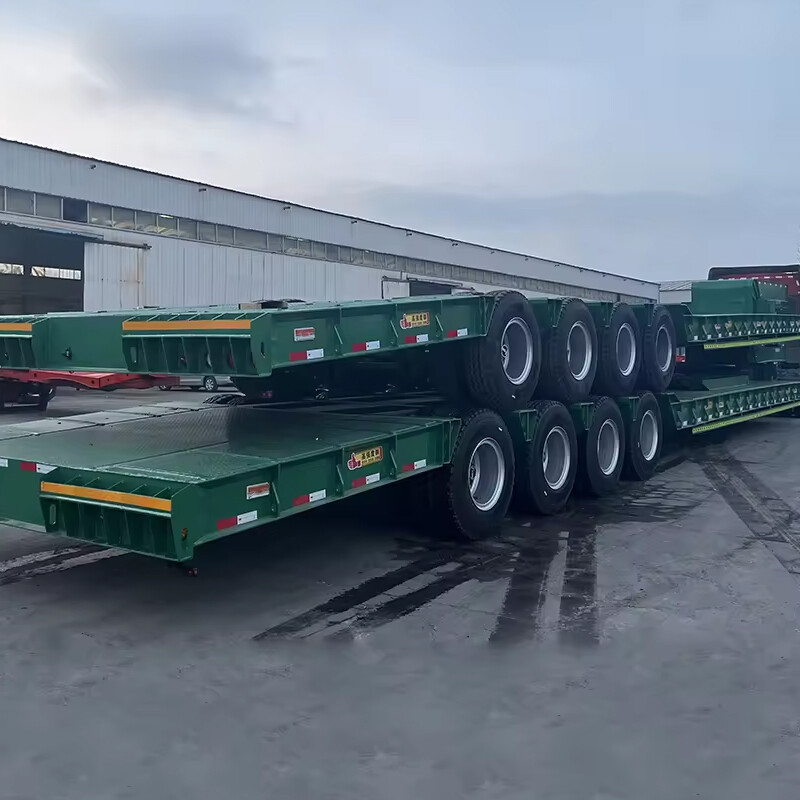

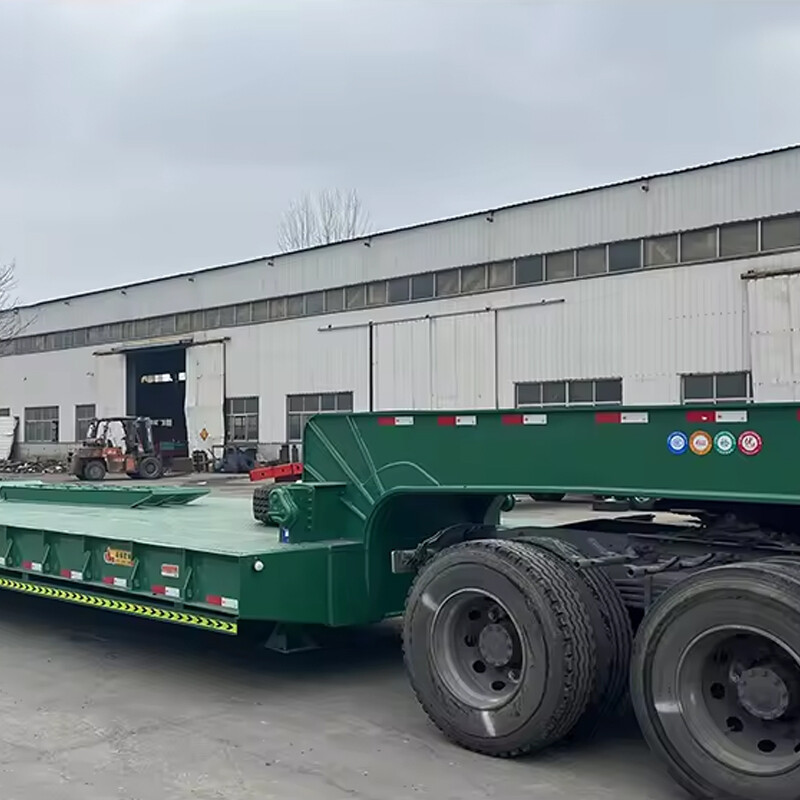

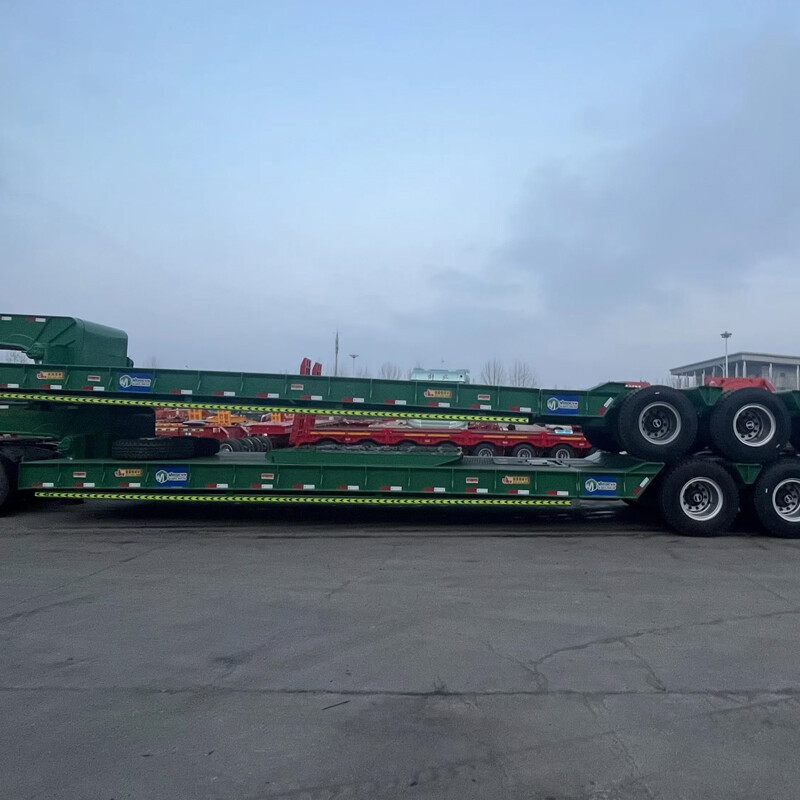

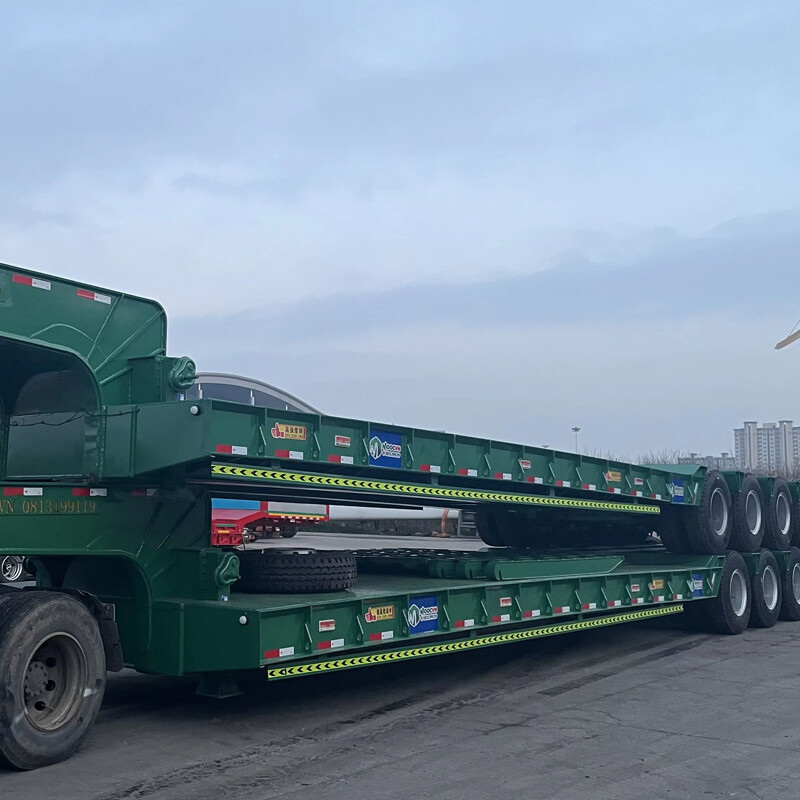

Bench Special Transporter 4 Axles 100/130 Tons Heavy Duty Low Bed Low Chassis Truck Semi Trailer Low Loader Trailer
The carriage is a fully welded structure, and the bottom plate is welded from high-strength, high-hardness, impact-resistant high-quality steel plates to adapt to the harsh off-road industrial and mining transportation and rough stone loading methods on engineering sites, and its service life is generally guaranteed to reach more than 10 years.
+8618865311900
+8618865311900
vastadvantageheavyindustry@s-materialgroup.com

Xuzhou Economic Development Zone, Jiangsu Province

whatsapp
E-mail
contact us
Product Description

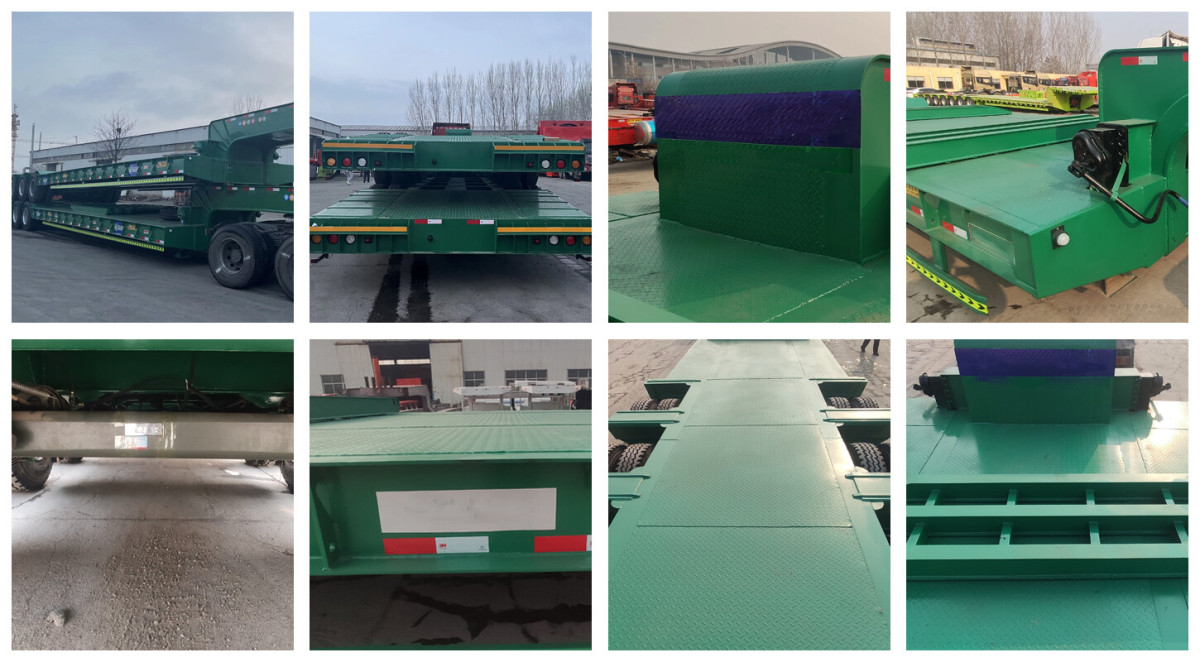

Products real shot
Onsite warehouse
Goods delivery
After-sales

Product Description

The main selling points of special equipment carriers can be summarized as follows: 1.High safety: Special equipment transport vehicles are usually equipped with multiple safety equipment, such as protective cabin, lock system, monitoring system, etc., which can ensure the safety of special equipment in the transportation process.2.Strong stability: professional chassis design and suspension system can effectively reduce vibration and ensure the stability of special equipment in the transportation process.Large loading capacity: The carriage structure and size of the special equipment transport vehicle are specially designed to meet the loading needs of large special equipment.3.Convenient management: Special equipment transport vehicles are usually equipped with GPS positioning, remote monitoring and other intelligent management systems, which can grasp the transportation situation in real time and improve management efficiency.4.Strong adaptability: special equipment transport vehicles can be customized according to different customer needs to meet the transportation needs of various types of special equipment.5.Energy conservation and environmental protection: Some special equipment transport vehicles adopt new energy technologies, such as pure electric or hybrid power, which can achieve energy conservation and emission reduction.In short, special equipment transport vehicle with its professional design and intelligent management, can provide customers with safe, efficient, environmentally friendly special equipment transport solutions.

Product Parameters

4 Axles LOWBED SEMI TRAILER
Model NumberWHLDM-1015008Tool Box1 box of standard tools
Outside Dimensions13500x2500x1500 (mm) (LxWxH) (Other Dimension Optional)Spare tire carrier2 sets
Rated Load80-100TMain Beam MaterialQ345B/ST52-3 manganese plates, automatic submerged arc,
Tare Weight12000 kgMain-beam Height 500mm,
UsageFor heavy duty machine, as transformer, crane, excavator transportation.Lower flange: 20mm
Wheel Base8310+13101310 (mm)Upper flange: 20mm
Axle Brand13t X FUWA BrandMid Web: 12mm
No. Of the Axles4Brake Air ChamberFour double and two single chamber
Tyre Specifications10.00R20The traction pin2' & 3.5' inter-changeable
No. Of the Tyres16 pcs , Triangle brandPin HeightAccording to the height of the tractor saddle.
Pieces of leaf-spring10pcs *90 *16mmElectrical System24V, 7core socket, lights according to European standards.
SuspensionHeavy Duty Leaf SpringBrake SystemDual Lines Braking System With Automatic Air Chambers
Front/Rear Overhang1950 mmColor and LogoDepends on the buyer's requirement.
Floor3mm management platePlace of OriginLiangshan, China










1、 One click repair, quick response

Customers can report repairs through various forms such as WhatsApp, WeChat, after-sales phone, official website, etc., and receive orders within 15 minutes. Customer service has many years of professional experience and strives to build a fast communication bridge to ensure that every request is resolved and everything is responded to

2、 Expert team, technical support

A powerful team of experts provides rapid consultation on faults, offers the best repair solutions, and offers lifelong technical support for the entire vehicle

3、 Time limited maintenance, overtime compensation

The repair of faulty vehicles is completed within a limited time frame. Generally, faults are completed within 24 hours, and major and difficult faults are completed within 72 hours. If the time limit is exceeded, compensation will be given at a rate of $200 per day

4、 Service quality, customer evaluation

Customers can evaluate the service quality of each order through the official website and WhatsApp after-sales account. The after-sales service is fully supervised by customers. If there is an unresolved after-sales problem, customers can receive a maximum compensation of $1000 per feedback

Applicable Scenarios
