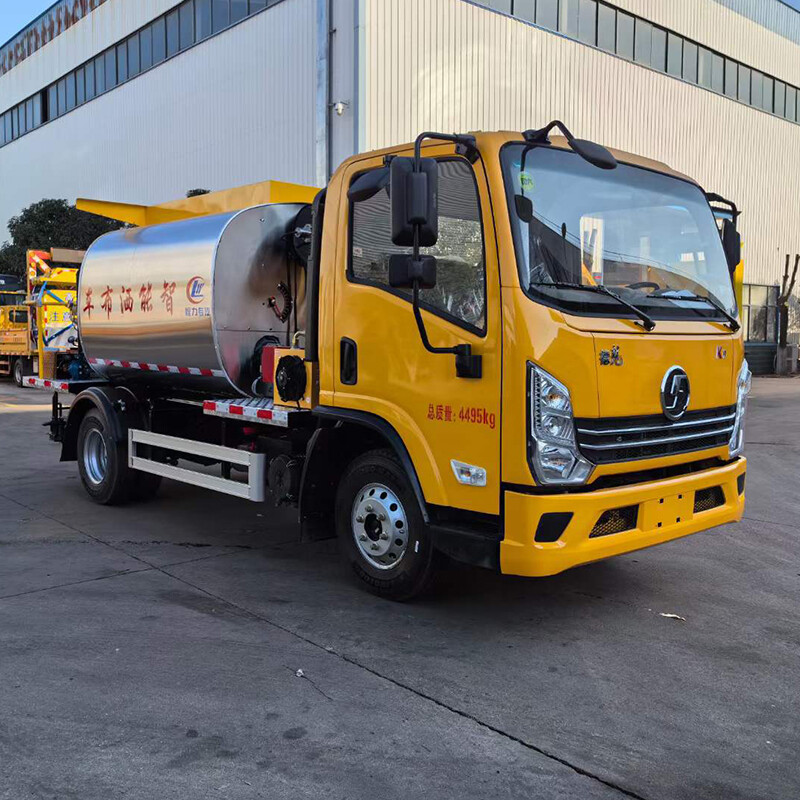

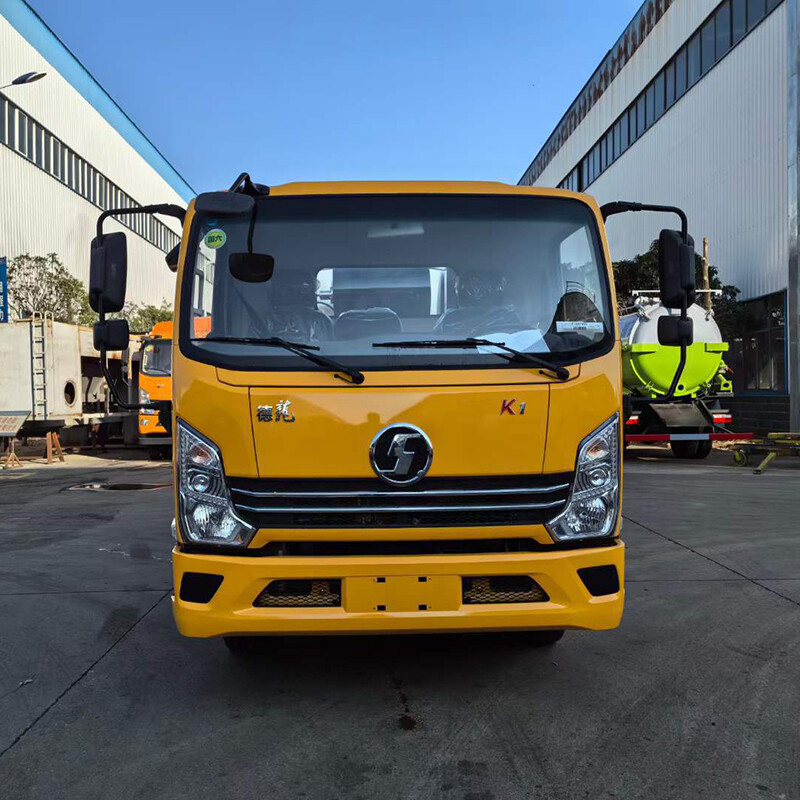

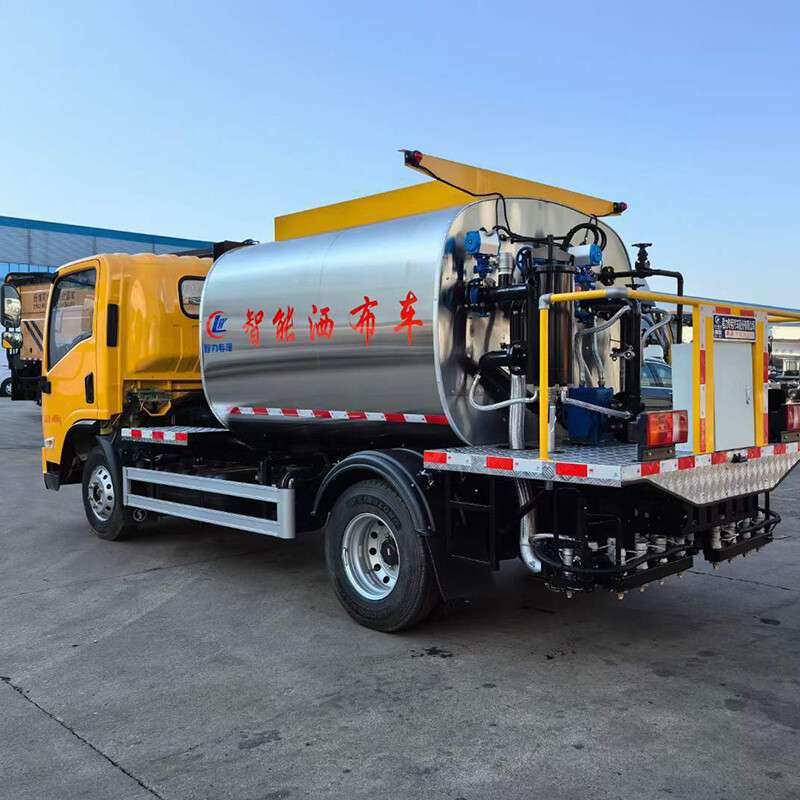

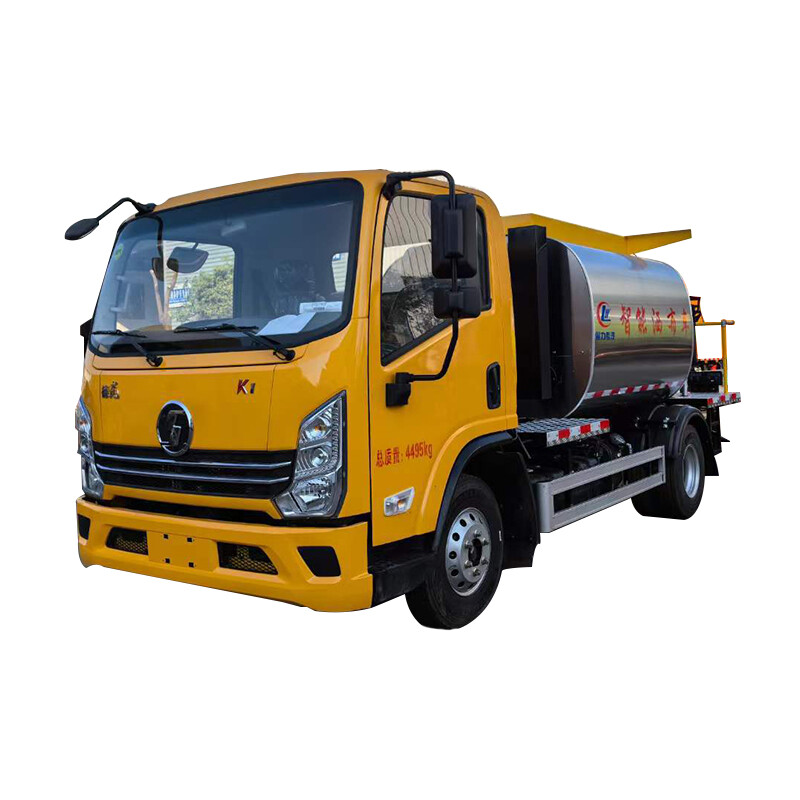

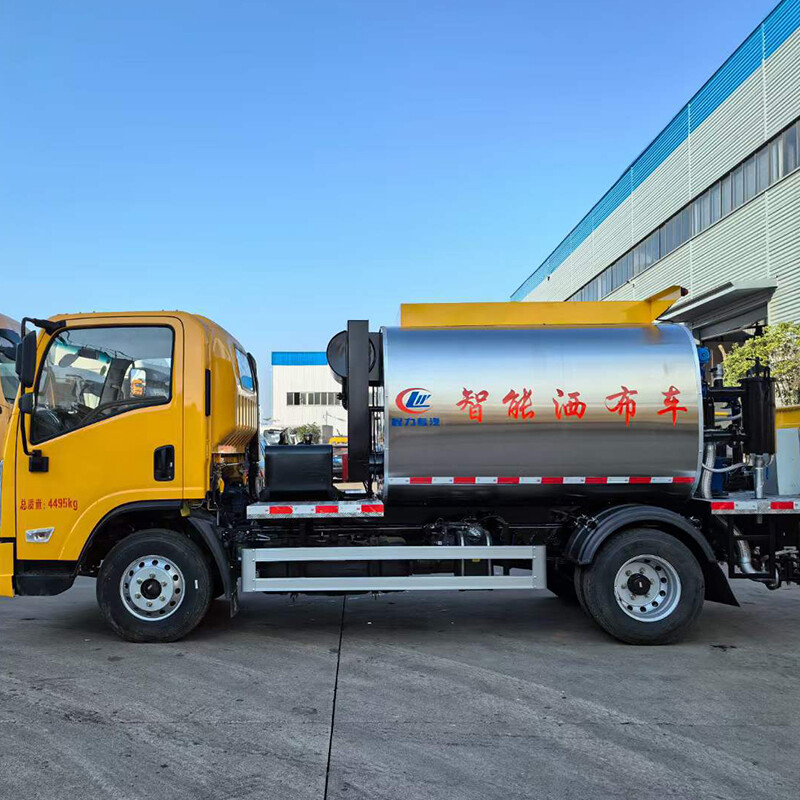

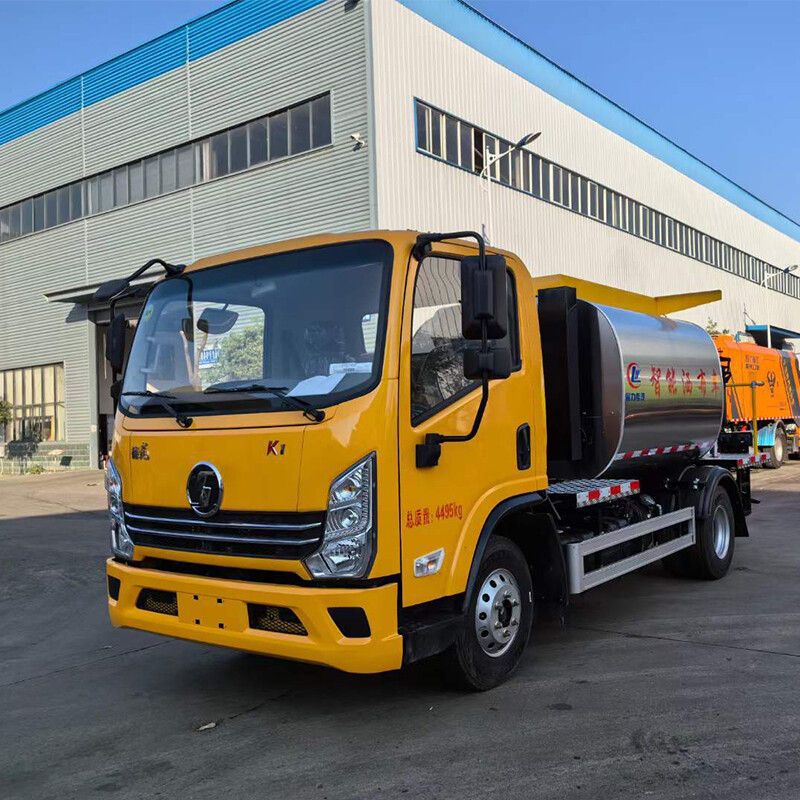

Asphalt Spreader
The asphalt transport truck is covered with iron sheets and lined with high-tech insulation materials, which has a long heat preservation time. Heating pipes are installed inside the tank to conduct heat.

Xuzhou Economic Development Zone, Jiangsu Province

Product Description

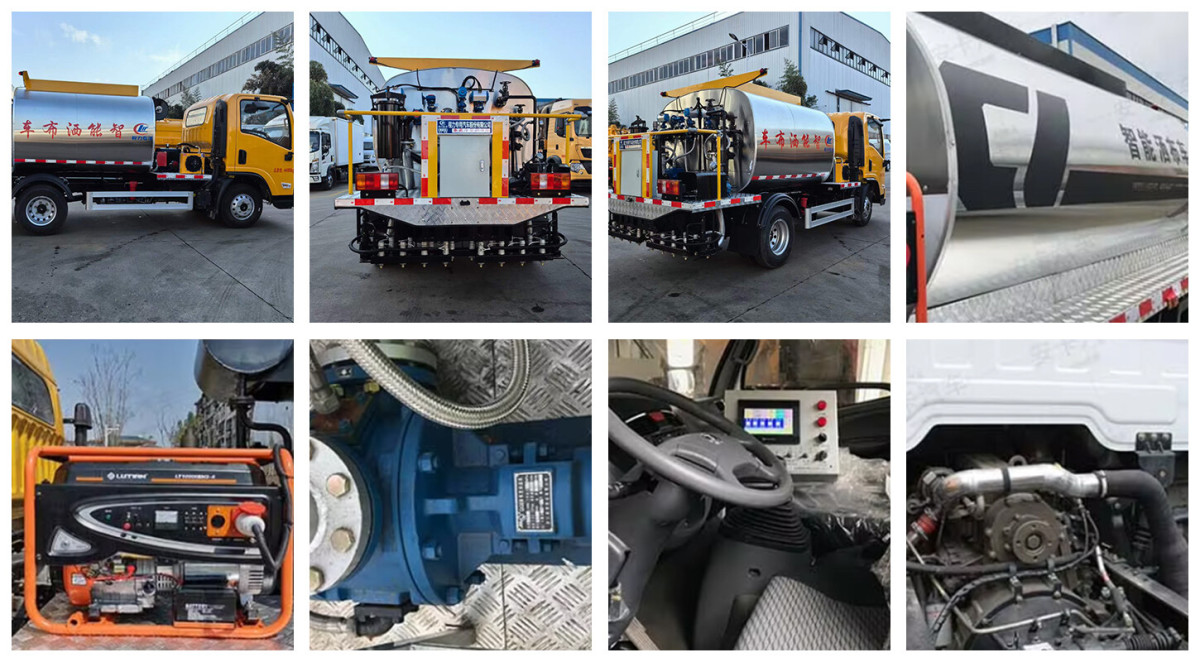

Products real shot
Onsite warehouse
Goods delivery
After-sales

Product Description

Selling point: low maintenance cost, easy operation, Weichai 190 horsepower, wheelbase 4200 (optional 4700), National VI emission standard, total mass 18 tons, curb weight 8.6 tons, the upper body adopts thermal oil diesel burner G20 automatic heating, the control system can be operated by one person in the driver's seat, the spreading width is 4.5 meters, and the spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc.


Product Parameters

Basic Information
Drive type:4x2Fuel Type:diesel fuel
Box length level:4.2 mWheelbase:3300mm
Gearbox:Fast C8J45TAengine:Weichai WP2.5NQ160E61
Body length:5.99 mRear axle ratio:4.333
Ride height:3.1 mBody width:2.2 m
Rear track:1700mmFront track:1736mm
Maximum speed:95KM/hVehicle weight:2.72 tons
Tonnage level:Light TruckDeparture angle:14 degrees
Approach angle:18 degreesRemark:Standard: metallic paint, all-inclusive cab (black fenders), ordinary rearview mirror, standard comfort seat, segment code screen instrument cluster, ordinary steering wheel, USB power supply, segment code screen instrument cluster, reversing buzzer, electric/air horn, domestic brake valve, spring energy storage parking, spare tire, high-strength steel rims, steel rear lower protection, steel side protection, T-box (national standard), ventilated and heated comfort seat: Optional: speed ratio 4.875, 3/8+6 leaf springs, 150L aluminum alloy fuel tank, T-box (for Beijing only), ETC (wired)
Market Segments:LTL

Front overhang/rear overhang:1.13/1.56m

Version:Luxury


Gearbox parameters
Gearbox Model:Fast C8J45TAGearbox Brand:Fast
Gear shifting:ManualForward gear:8 gears
Reverse gear number:2


Cab parameters
Cab:Wide body single rowCab width:1995mm
Maximum number of passengers:2 peopleNumber of Seat Rows:Single row


Chassis parameters
Front Axle Description:2.0T Hande maintenance-free front axlePermissible load on front axle:1840KG
Frame size:800x180 straight beam mmRear Axle Description:3.5T (rated load 6T) Hande maintenance-free rear axle
Permissible load on rear axle:2650KGSpeed ratio:4.333
Number of springs:3/5+3,3/8+6Aluminum Alloy Wheels:


Tire
Tire specifications:7.0OR16LT 8PRTire type:Tubeless
Number of tires:6



Fuel Tank
Fuel tank material:plasticFuel tank capacity:120L


Engine parameters
Engine Model:Weichai WP2.5NQ160E61Engine Brand:Weichai
Engine common name:Weichai WP2.5NQNumber of cylinders:4 cylinders
Fuel Type:diesel fuelCylinder arrangement:In-line
Displacement:2.49LEmission standards:National VI
Maximum output power:118kwMaximum horsepower:160 HP
Maximum torque:450N·mMaximum torque speed:1400-2200RPM
Rated speed:2900RPMEngine Type:High pressure common rail










1、 One click repair, quick response

Customers can report repairs through various forms such as WhatsApp, WeChat, after-sales phone, official website, etc., and receive orders within 15 minutes. Customer service has many years of professional experience and strives to build a fast communication bridge to ensure that every request is resolved and everything is responded to

2、 Expert team, technical support

A powerful team of experts provides rapid consultation on faults, offers the best repair solutions, and offers lifelong technical support for the entire vehicle

3、 Time limited maintenance, overtime compensation

The repair of faulty vehicles is completed within a limited time frame. Generally, faults are completed within 24 hours, and major and difficult faults are completed within 72 hours. If the time limit is exceeded, compensation will be given at a rate of $200 per day

4、 Service quality, customer evaluation

Customers can evaluate the service quality of each order through the official website and WhatsApp after-sales account. The after-sales service is fully supervised by customers. If there is an unresolved after-sales problem, customers can receive a maximum compensation of $1000 per feedback

Applicable Scenarios
